Network Cable Tester 10KM Fault Locator Optical Power Meter Fiber Tester LAN Cable Tracing

Product Features

This 4-in-1 multifunction network cable tester combines a 10KM fault locator, optical power meter, fiber tester, and LAN cable tracing function, providing comprehensive network testing.
With a 60000 counts display and support for length self-calibration, it offers accurate and reliable test results.
The digital tracing function, available in digital mode (ET636) and digital and vibration mode (ET638), makes it easy to locate cable faults.
It supports various cable types, including network cables, telephone lines, and coaxial cables, with different length capabilities.
Equipped with a lithium battery power supply, it is portable and suitable for on-site network testing and maintenance.

Specifications

Brand Name

TOOLTOP

Hign-concerned Chemical

None

Battery Included

Yes

Name

4 in 1 Multifuction Network Cable Tester

Display

60000 counts

Power supply

1500mAH(Host) / 800mAH(Receiver) Lithium Battery

Cable Length

Network cable (600M), telephone line (400M), coaxial cable (400M)

Length self-calibration

Support

Digital Tracing

Digital mode (ET636),Digital and vibration mode(ET638)

Cable Mapping

Normal/Open/Short/Cross

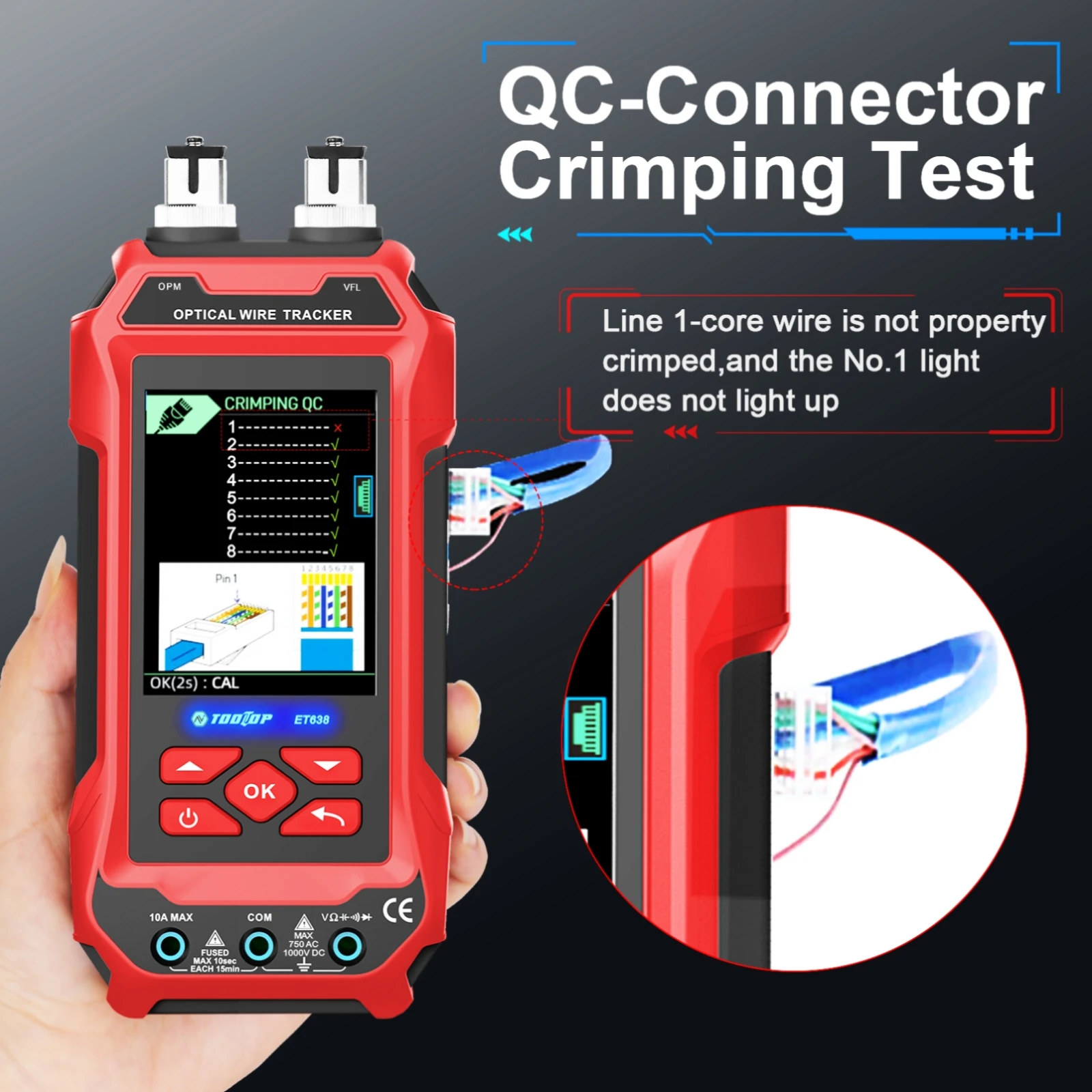

QC Crimping

Support

Receiver

Sensitivity adjustable

Switch Flash

10M/100M/1000M

POE Test

Voltage/polarity

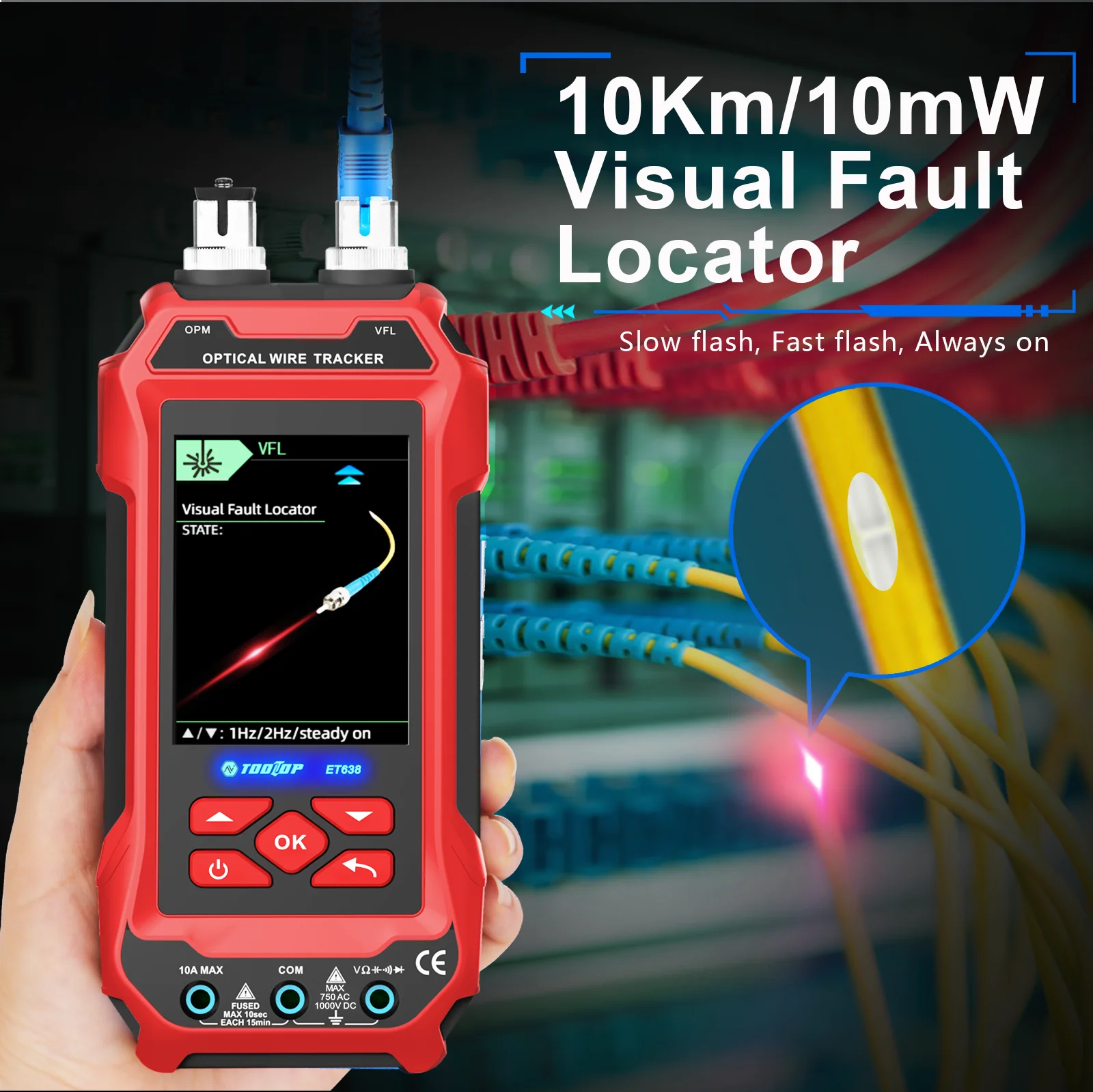

VFL

10wm, about 10kM, ON 1Hz/2Hz/OFF

Optical Meter Measurement range

-70.00~6.00 dBm

Interface

ST, SC, FC

Multimeter

only for ET638

DC Voltage

1000V

AC Voltage:

750V

DC Current:

10A

AC Current

10A

Resistance

60MΩ

Capacitance

60MF

Frequency

6MHz

Continuty

support

Diode

support

Fuse

CE 5*20mm 10A/100V

Description

Network Cable Tester 10KM Fault Locator Optical Power Meter Fiber Tester LAN Cable Tracing
