Khadas Tone2 DAC Hi-Fi Mini Desktop Audio Converter USB/S/PDIF Input

Product Features

The Khadas Tone2 DAC Hi-Fi mini desktop audio converter supports high-end PCM sampling frequencies of 768 kHz and a 32-bit word length, delivering superior audio quality.
It has coaxial inputs and XLR outputs, and is compatible with Android devices via USB, providing versatile connectivity options.
With a D/A converter of ESS ES9038Q2M and advanced amplifier chipsets, it can reproduce rich and detailed sound.
The aircraft-grade aluminum enclosure and other high-quality materials ensure durability and a sleek appearance.
It supports multiple input formats such as MQA, AAC, and FLAC, and is RoHS-certified for environmental safety.

Specifications

Brand Name

Khadas

PCM Sampling Frequencies

768 kHz

PCM Word Length

32-bit

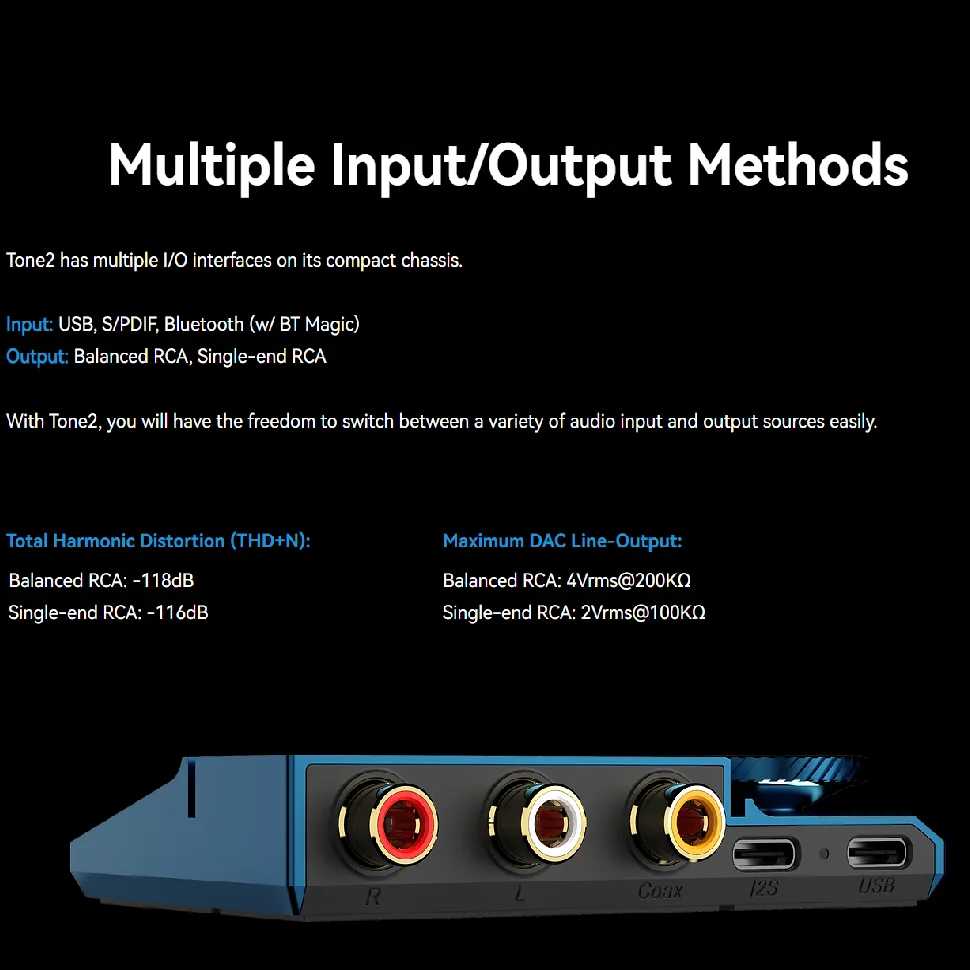

Inputs

Coaxial

Material

Metal

Hign-concerned Chemical

None

Outputs

XLR

Type

Desktop

DSD Sampling Frequencies

22.5792 MHz (DSD512)

D/A Converter

ESS ES9038Q2M

USB Compatibility

Android

Input Format

MQA, AAC, FLAC, APE, WMA, WAV, OGG, MP3 .

Model Number

Tone2

Bluetooth

Yes

WIFI

Color

Black, Blue

Materials:Enclosure/Volume Knob

Aircraft-Grade Aluminum

Materials:Bottom Cover

ABS, Polycarbonate

Materials:Foot Pad

Silicone

Sampling Rate USB Input (PCM )

PCM 768KHz 32bit

Sampling Rate USB Input(DSD)

DSD 512MHz 1bit (Native)

Sampling Rate Coaxial Input

192KHz 24bit

Coprocessor

STM8S003, Programmable

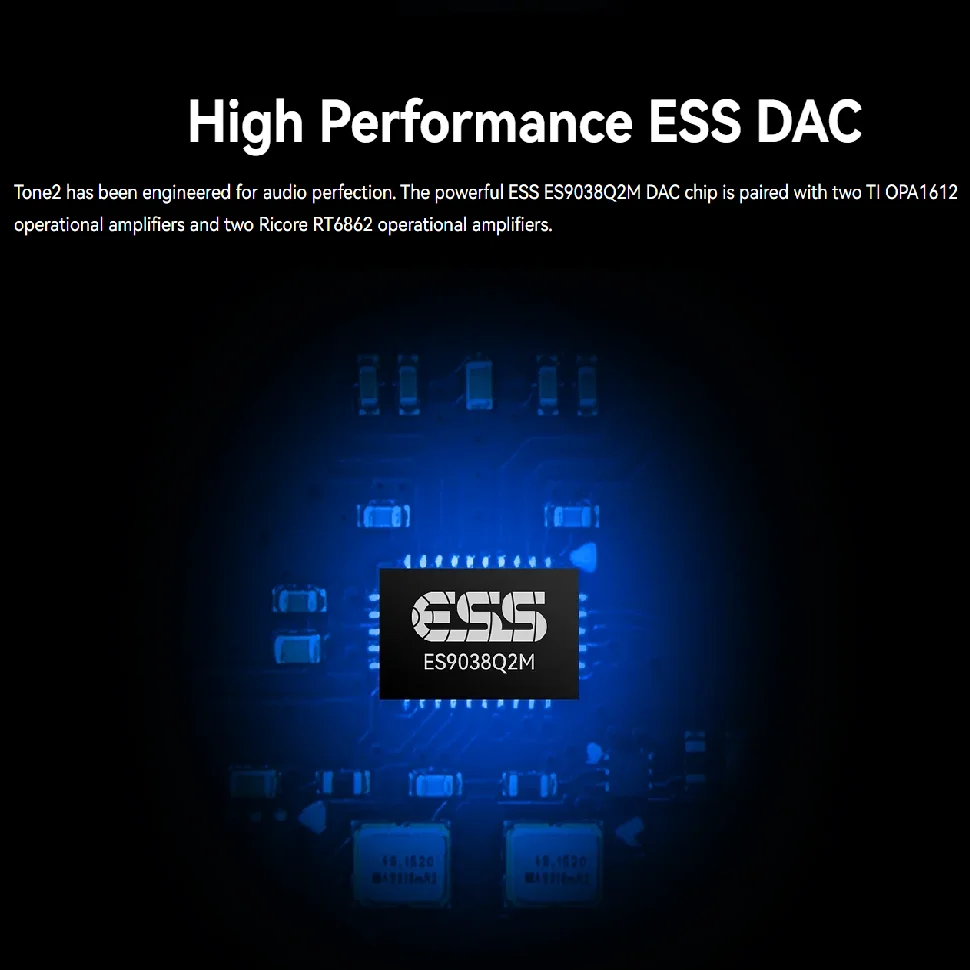

DAC Chipset

ESS ES9038Q2M 32-Bit Stereo Mobile Audio DAC

Amplifier Chipsets

I/V Stage: TI OPA1612 x2 LPF Stage: RT6862 x2

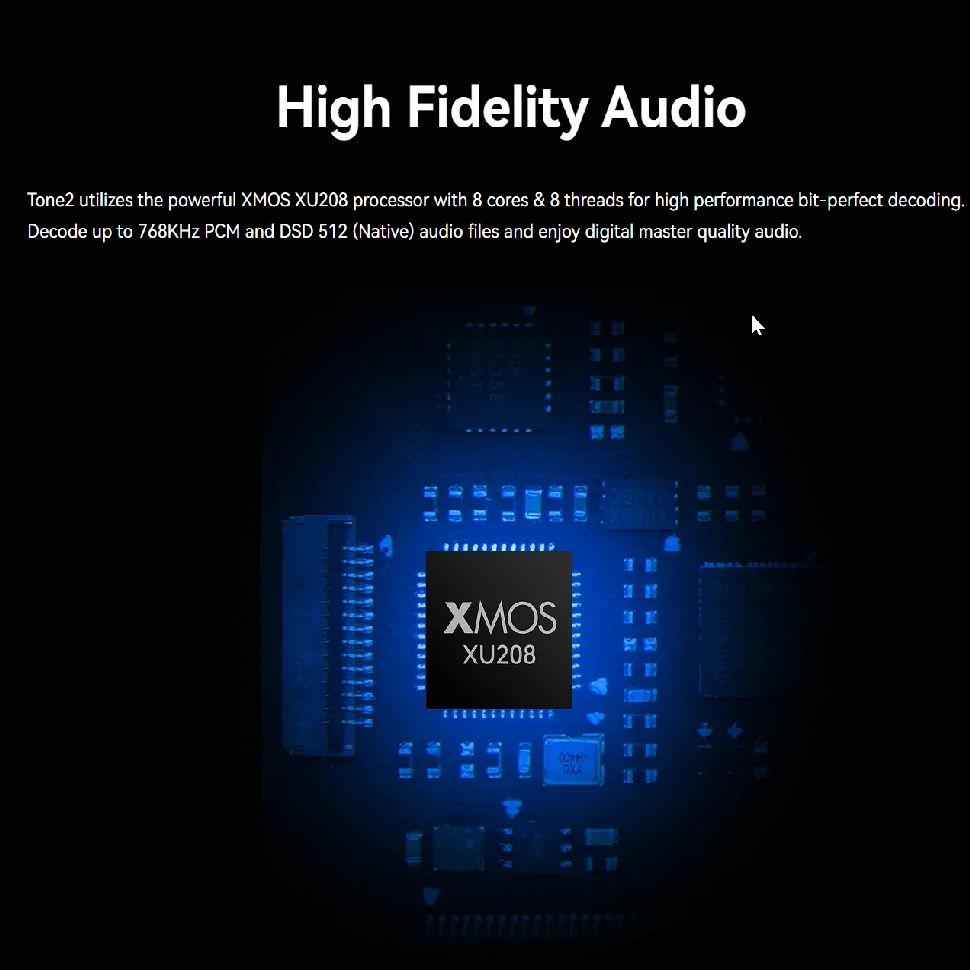

Processor

XMOS XU208, 8 Real-time Logical Cores

Size

17.0mm(h) x 88.0mm(w) x 61.5mm(l) / 68.0mm (with RCA), Finish

Weight

34 grams (Maker Kit Board) / 95 grams (Finish)

O/S Compatibility

Android (supports OTG function)

Description

Khadas Tone2 DAC Hi-Fi Mini Desktop Audio Converter USB/S/PDIF Input
