Hign-concerned Chemical
None
Maximum IR Distance(m)
10-20m
Touch Screen
7 inch G+G structure capacitance screen
LCD screen
7 inch resolution 1920x1200 IPS HD full view
Ethernet Port
10/100/1000M adaptive
WIFI
Built-in wireless WIFI, speed 150M

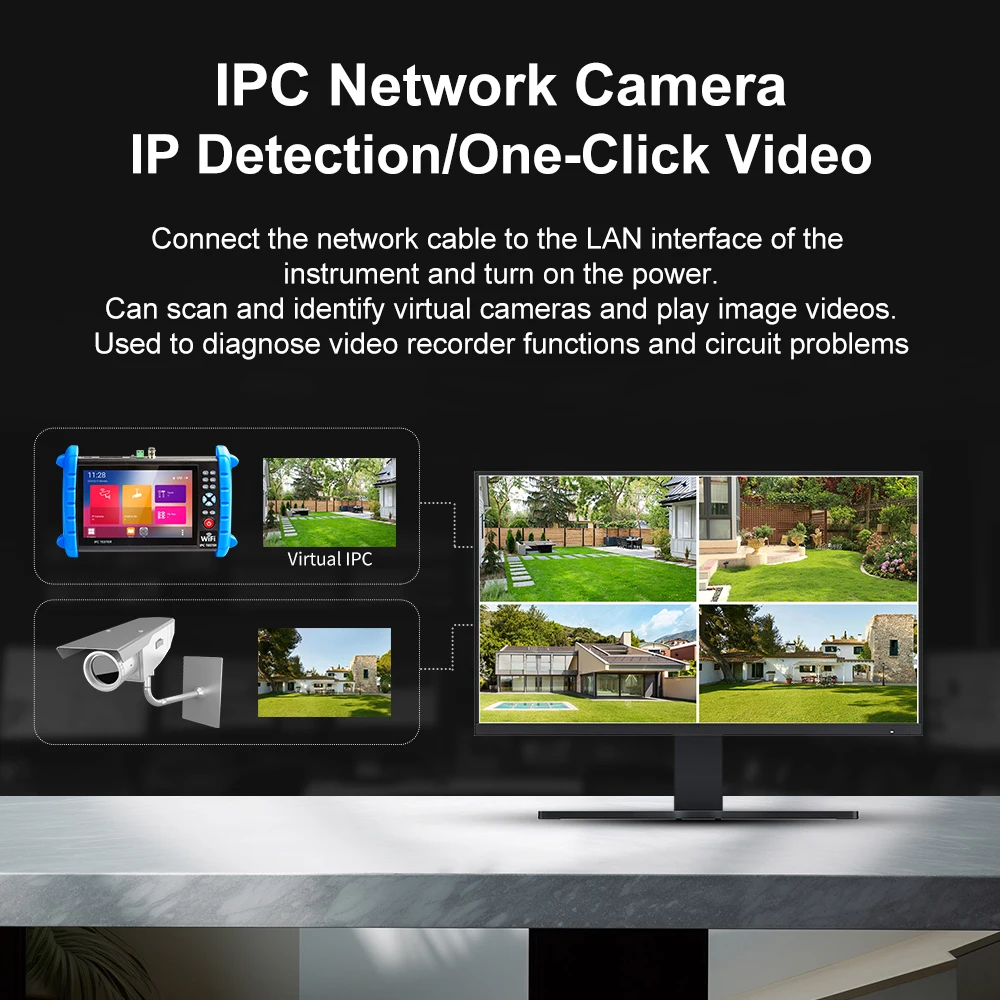

IP Camera Test
4K H.265 IP camera test, video image real-time display without delay, support video snapshot, recording and playback
ONVIF
ONVIF tool, support DAHUA, HIKVISION, ACTI, SAMSUNG and other more than 30manufacturer private protocols and customized, support camera mobile client installation
PTZ Control
Support Pelco-D/P, Samsung, Panasonic, etc. more than 30 protocols
CVBS Analog Camera Test
1 channel CVBS analog signal input, support PALNTSC format adaptation

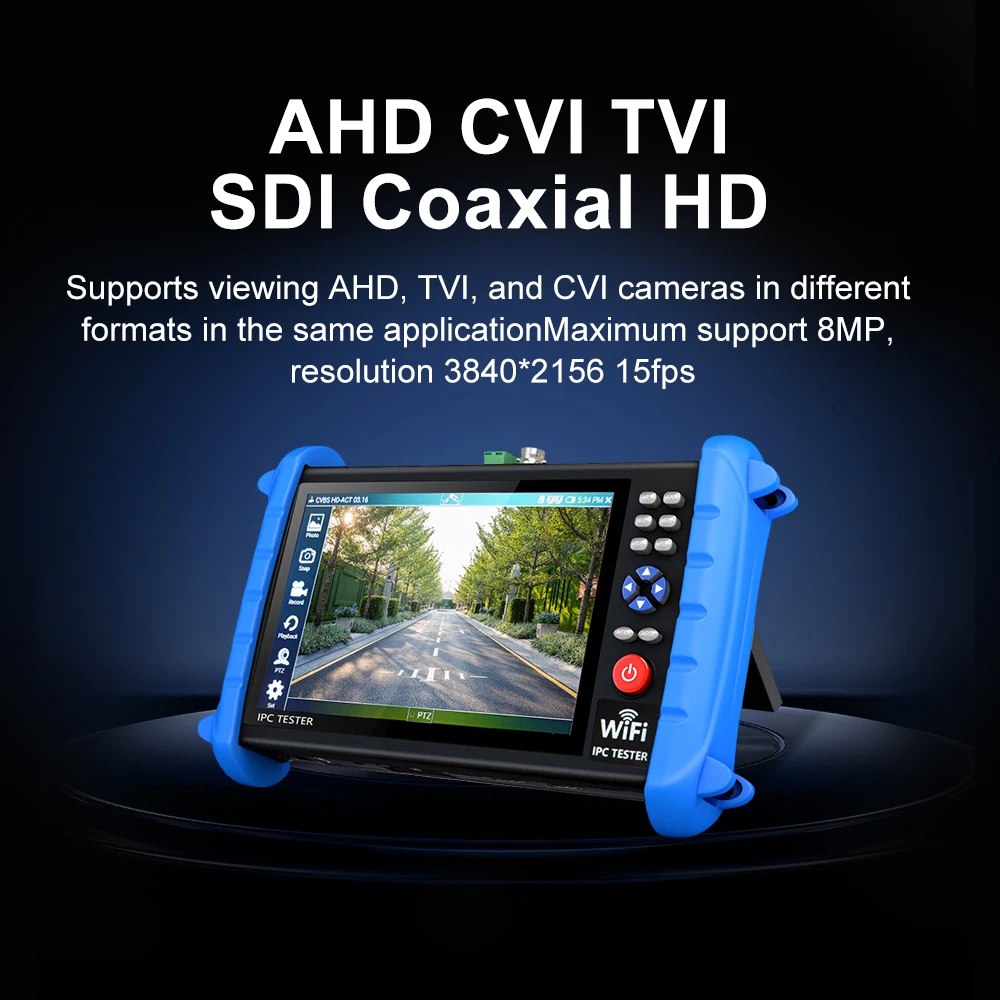

HD Camera Test
Support HD TVI8MP, CVI 8MP, AHD SMP.
Video Image Zoom
Real-time enlarge moving HD video image, max enlarge 8 times

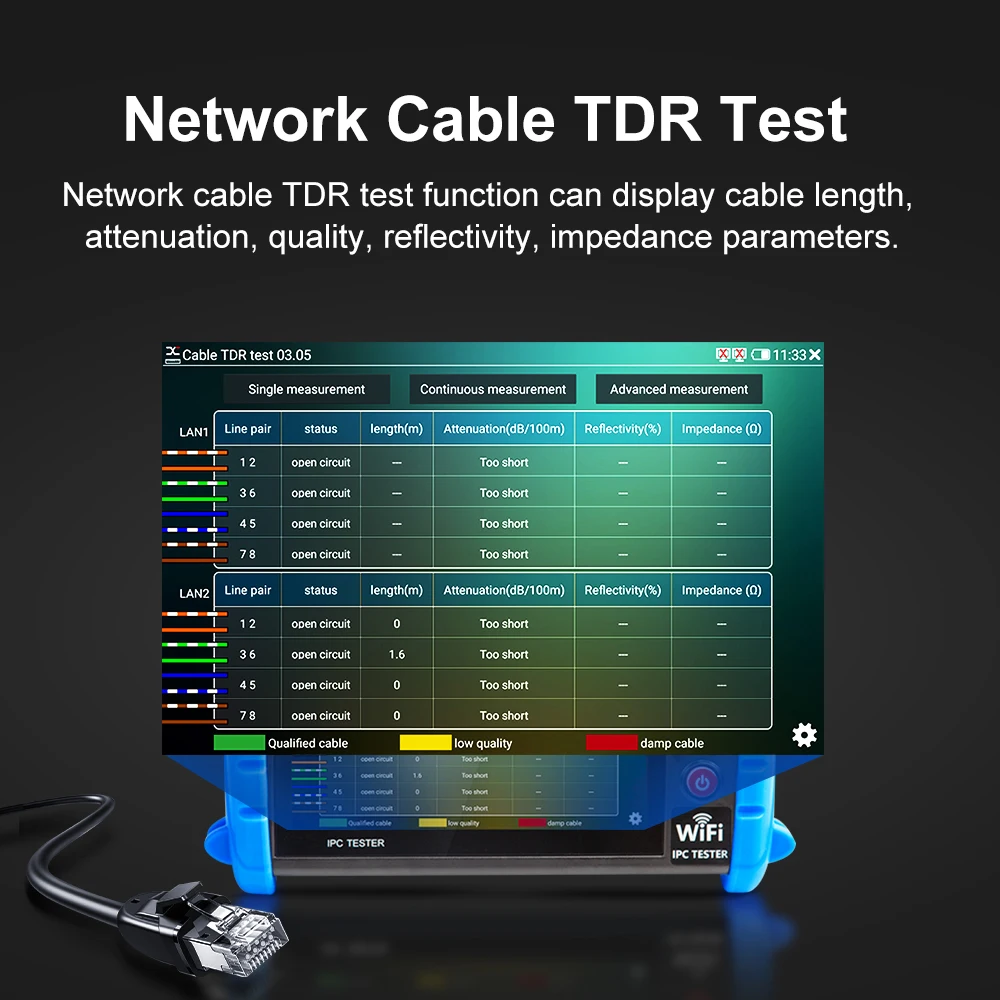

Cable Test
Built-in cable testing tool, check cable sequence and breakpoint,ete
Audio Test
One channel audio signal input for testing, can be recorded and saved
optical power meter
Test optical fiber parameters
DC12V Power Output
DC12V power output, max current 3A, provide temporary power for cameras
DC24V Power Output
DC24V power output, max current 1A, provide temporary power for cameras
PoE Power Output
48V standard PoE output, provide PoE power for cameras
DC5V Power Output
Provide temporary power for USB-powered cameras or emergency power for mobile phones, max current 2A
PSE Voltage Test
Display PoE power supply device voltage and circuit condition
HDMI Video Input Test
Input HD video image into instrument to test video recorder
RS485 Serial Port tool
Can send or receive any data or hex data
Battery
Built-in 7.4V polymer lithium battery, capacity 7000mAh, can work continually for 8-10 hours
LANGUAGE
Chinese Simplified, Chinese Traditional, English, Germany, Spanish, Portuguese, Russian, French, Polish, Korean, Japanese, Turkish and Italian 13 languages
Working Temperature
-10°C-+50°C
External Size
23emx14emx4.5em
