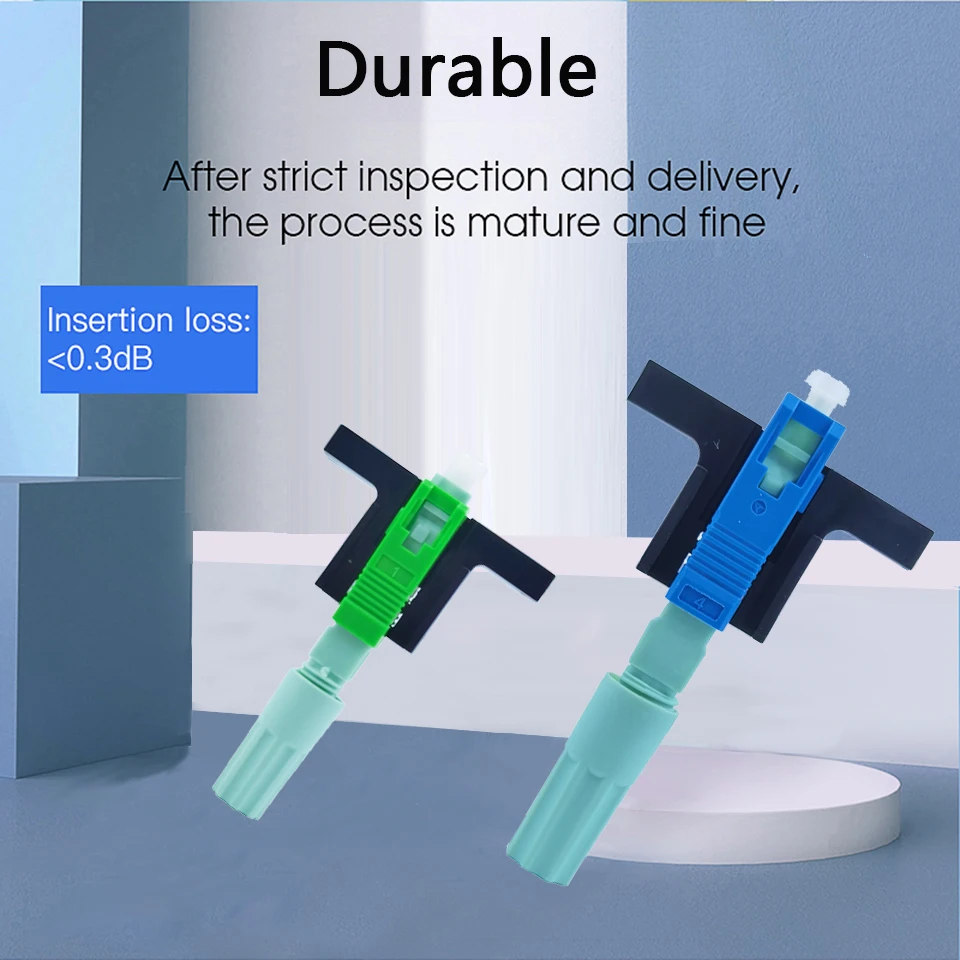

Fiber Optic Adapter FTTH SC UPC Optical Fiber Quick Connector Embedded APC

Product Features

This fiber optic adapter is a hybrid SC UPC optical fiber quick connector with an embedded APC, suitable for 0.9mm, 2.0mm, 3.0mm cables and 2.0x3.0mm cables.
It has a fiber diameter of 125um and a coating diameter of 250um, providing high-quality optical performance.
With an insertion loss of 0.2dB (max. 0.5dB) and a return loss of over 50dB, it ensures efficient data transmission.
It has a service time of 10 years, a tensile strength of over 30N, and can withstand temperature cycling with IL < 0.3dB and RL < 5dB.
This adapter is compatible with Huawei and is suitable for use in various fiber optic communication systems.

Specifications

Product Name

SC Fiber Connector

Connector Type

Hybrid

Applicable Cable

0.9mm, 2.0mm, 3.0mm Cable; 2.0x3.0mm

Fiber Diameter

125um

Coating Diameter

250um

Insertion Loss

0.2dB (max. 0.5dB)

Return Loss

Over 50dB

Service Time

10 years

Tensile Strength

Over 30N

Temperature Cycling

IL<0.3dB; RL<5dB

Assembly Repeatability

5 times

Installation Durability

Over 500 times

Atmospheric Pressure

60kpa~160kpa

Operating Temperature

-40 to 85 degree Celsius

Storage Temperature

-40 to 85 degree Celsius

Brand Name

tapirapeco

Model Number

JYD-LJ12

Size

3*5*3

Fiber Type

Single Mode

Compatible

Huawei

Item Length

30M

Description

Fiber Optic Adapter FTTH SC UPC Optical Fiber Quick Connector Embedded APC
