BXUAN ultrasonic proximity switch sensor M30 NPN/PNP 4-20mA/0-10V/rs485 output detection distance 4m

★ ★ ★ ★ ★
Reviews | Questions & Answers
US $262.52

Color :
Quantity
In Stock. Ships in 24 hours
Shipping: US $0.00
Estimated Delivery on -
Secure Payment
Multiple payment options
Customer Service Guarantee
DOA Guarantee Missing/Wrong Items Guarantee Quality Guarantee No Reason Returns

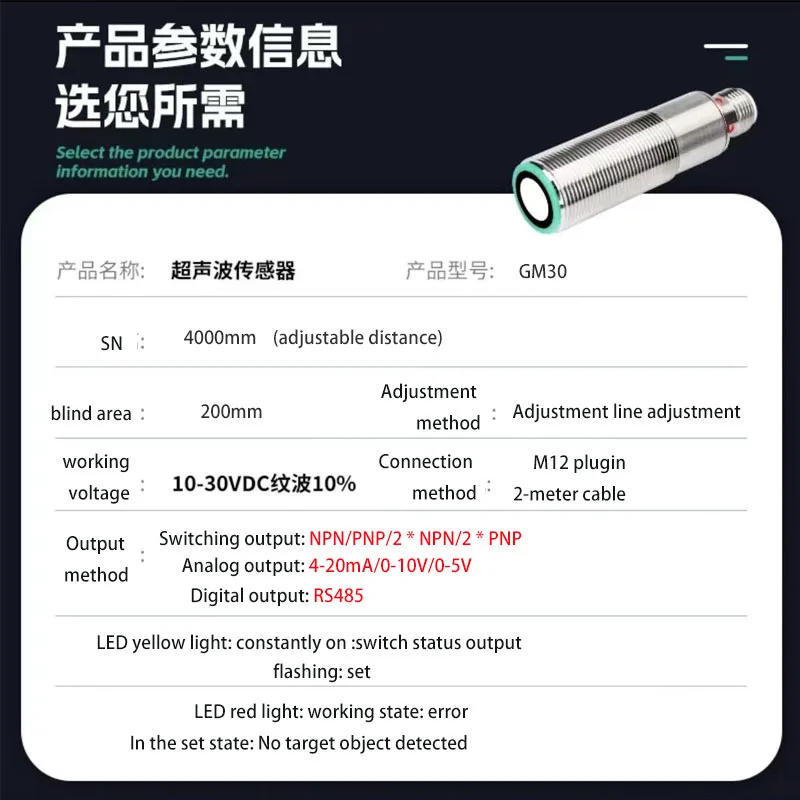

Specifications
Hign-concerned Chemical
none
Output
Switching Transducer
Theory
Ultrasonic Sensor
Model Number
GM30
Type
Sound Sensor
Material
Polymer
Detection range
200...4000mm
Dead band
0...200mm
Transducer frequency
Approx.85KHz
Response time
Approx.325ms
Standard target plates
100mm*100mm
No-load current
≤60mA
Supply voltage
10-30VDC ripple 10%
Repetitive accuracy
≤0.5%
Range adjustment
Adjust the farthest and closest range by adjusting the line
Protetion level
IP65
Connection type
H5 (5-pin) M12 connecting wire/2m PVC cable
LED yellow light
indication of the switching state flashing:program function object detected
LED red light
flashing: normal mode: error Program function: no object detected permanently: Program mode, object uncertain
LED green light
solid: monitoring system flashing: program function
