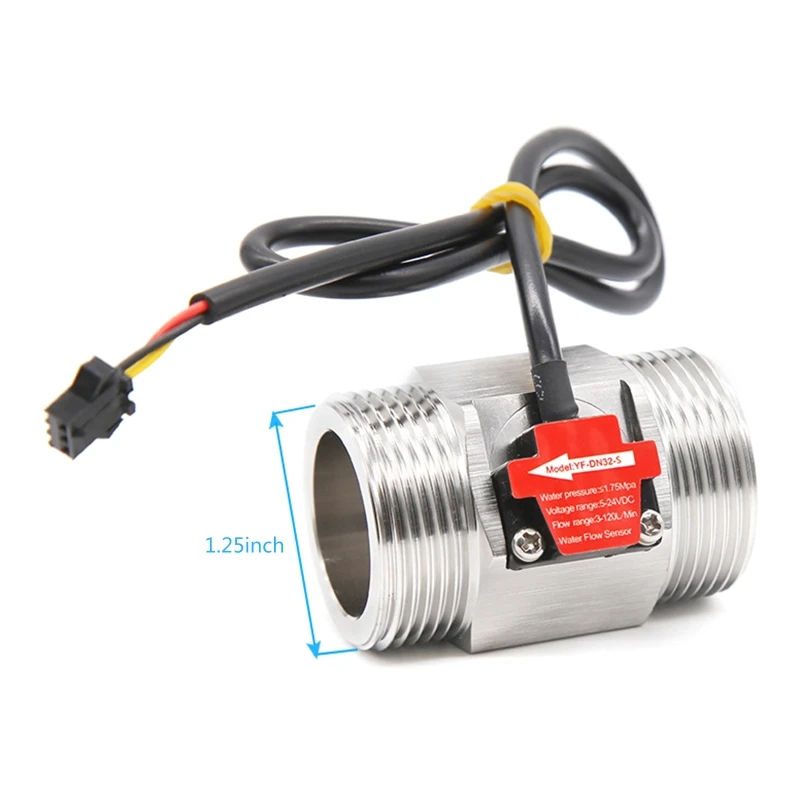

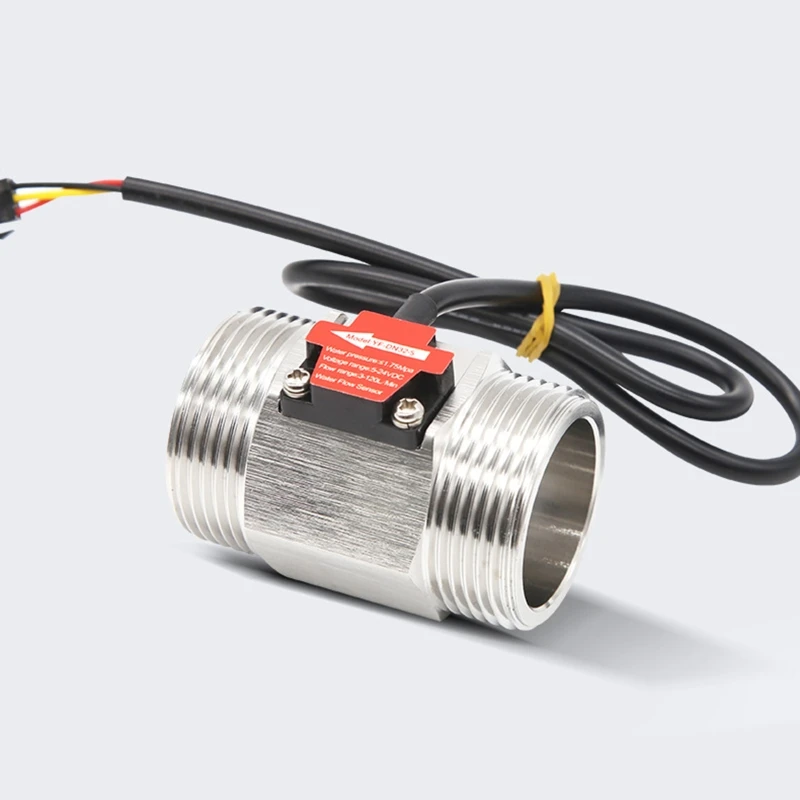

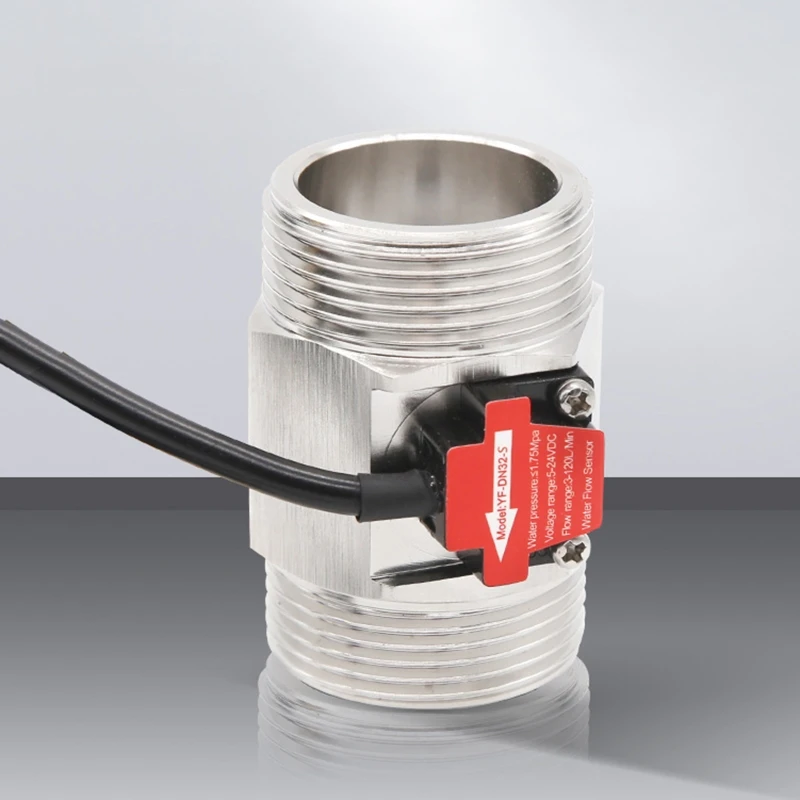

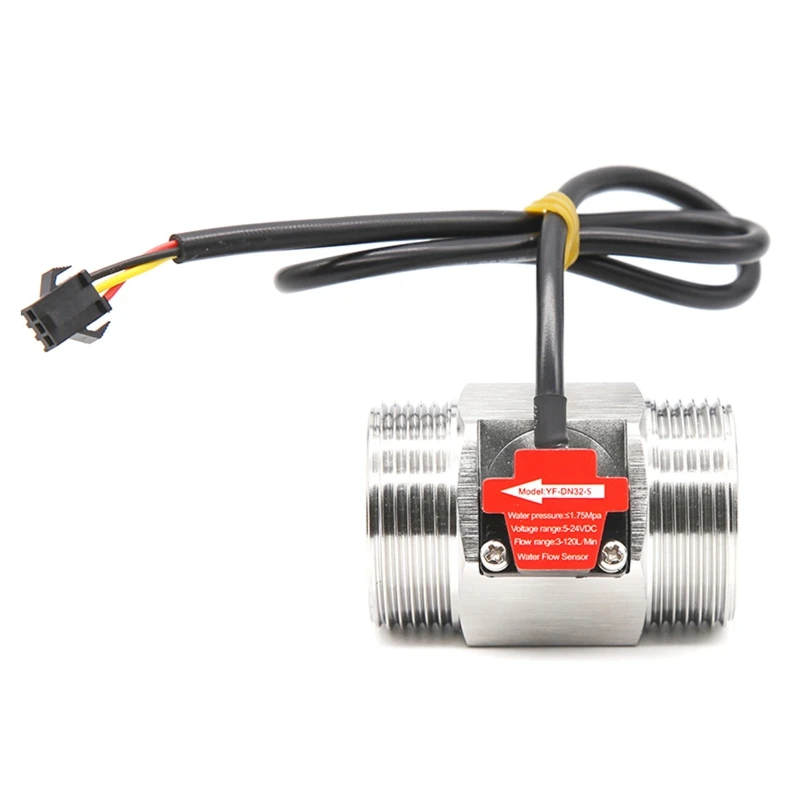

652F Water-flows Meter-Switches 1.25inch Hall Effect Liquid Switches Flowmeter Meter Used for Water Heaters Farm Irrigation flow meter water flow meter turbine flow meter digital turbine flow meter

Product Features

This water flow meter switch features a 1.25-inch design with male BSPP thread coupling type, suitable for water heaters and farm irrigation, offering a measurement range of 3-120L/MIN 1%.
Made of stainless steel, it has a size of approximately 4.7x4.7x6.4cm/2x2x2.5in, and can withstand an allowable pressure equal to or less than 1.75mpa, ensuring durability in various applications.
With an operating voltage range of 5-24VDC and a maximum operating current of 15mA (DC5V), it has a load capacity equal to or less than 10mA (DC5V), providing stable performance.
Its pulse characteristics are (Hz) =[1.08xQ] 5%, which means 64 pulses per liter of water, and the output pulse duty ratio is 50 10%, enabling accurate flow measurement.

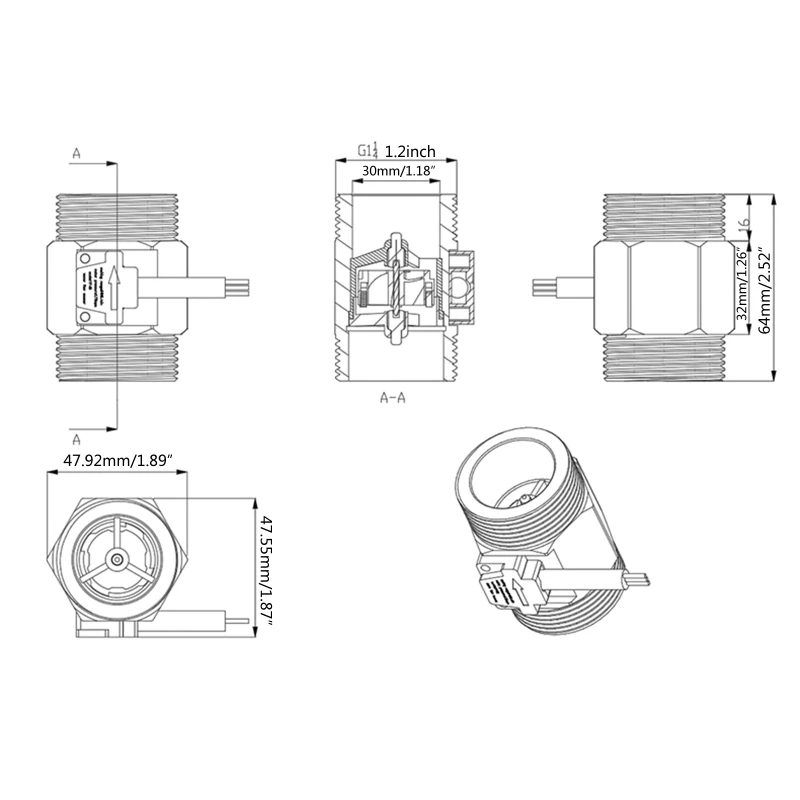

The inner diameter of the inlet is 32.5mm and the outlet inner diameter is 30mm with an outer diameter of 41.5mm, and the screw teeth length is 16mm, facilitating easy installation and connection.

Specifications

Brand Name

OOTDTY

Hign-concerned Chemical

None

DIY Supplies

Metalworking

Model Number

DN32 stainless steel flowmeter 1.25 inch

Joint Pipe Bore Size

1-1/4"

Measurement Range

3-120L/MIN±1%

Coupling Type

Male BSPP Thread

Material:

stainless steel

Size:

approx 4.7x4.7x6.4cm/2x2x2.5in

Operating voltage range:

5-24VDC

Maximum operating current:

15mA (DC5V)

Load capacity:

equal or less than 10mA (DC5V)

Allowable pressure equal or less

than1.75mpa

Storage temperature/humidity:

-25 to +80°C/25% to 90%RH-

Flow range:

3-120L/MIN±1%

Pulse characteristics

(Hz) =[1.08xQ]±5%, which is 64 pulses per liter of water

nner diameter/outer diameter inlet

inner diameter 32.5mm, outlet inner diameter 30mm/ outer diameter 41.5mm

The length of screw teeth is

16mm

Output pulse high level :

more- than DC4.5V (input voltage DC5V

Output pulse low level:

The output pulse duty ratio is 50±10%

semi_Choice

yes

Description

652F Water-flows Meter-Switches 1.25inch Hall Effect Liquid Switches Flowmeter Meter Used for Water Heaters Farm Irrigation flow meter water flow meter turbine flow meter digital turbine flow meter
