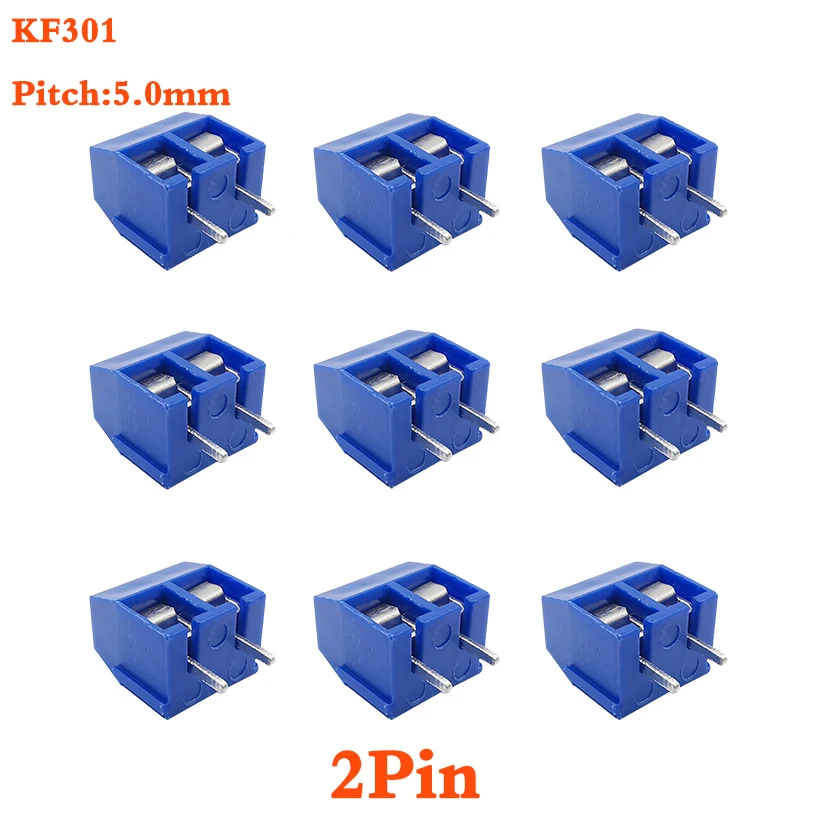

Screw Wire Terminal Block KF301 2P 3P 4P 5mm 5.0mm Pitch Straight Pin Spliceable Plug-in PCB Cable Connector KF301-2P KF301-3/4P

Product Features

This screw wire terminal block, such as KF301-2P, 3P, 4P, offers a 5.0mm pitch and straight-pin design, providing a stable and reliable connection for your PCB cable.
Made of plastic housing (PBT, UL94V-0), this terminal block is flame-retardant and safe to use, ensuring the safety of your electrical circuits.
The copper, tin-plated pin header and M2.5 steel zinc-plated screws ensure good conductivity and durability, reducing the risk of electrical failures.
With a rated current of 16A and a rated voltage of 300V, this terminal block can handle high-power electrical connections, meeting your various electrical needs.
Available in different pole options (2P, 3P, 4P) and quantities (50/20/10Pcs), you can choose the most suitable one for your specific project.

Specifications

Material

Plastic

Poles

2P 3P 4P

Pitch

5.0mm

Pin header

Copper,Tin plated

Rated current

16A

Screws

M2.5 steel Zinc plated

Rated voltage

300V

Insulation resistance

5000MΩ/1000V

Housing

PBT,UL94V-0

Contact resistance

20mΩ

Torque

0.5Nm(3.6lb.in)

Temp.Range

-30Celsius to+120Celsius

Strip length

4.5-5mm

MAX Soldering

+250Celsius for 5 Sec

Withstanding Voltage

AC1500V/1Min

Feature1

F301 2PIN 3PIN 4PIN PCB Conenctor

Feature2

Plug-in Screw Terminal Block Connectorector

Feature3

2 Pin 3 Pin 4Pin Spliceable PCB Terminal Block

Feature4

PCB Screw Terminal Block Connector

Quanity

50/20/10Pcs

Voltage

24V

Model Number

KF301 2P 3P 3P Screw Terminal Block Connector

Hign-concerned Chemical

None

semi_Choice

yes

Description

Screw Wire Terminal Block KF301 2P 3P 4P 5mm 5.0mm Pitch Straight Pin Spliceable Plug-in PCB Cable Connector KF301-2P KF301-3/4P
