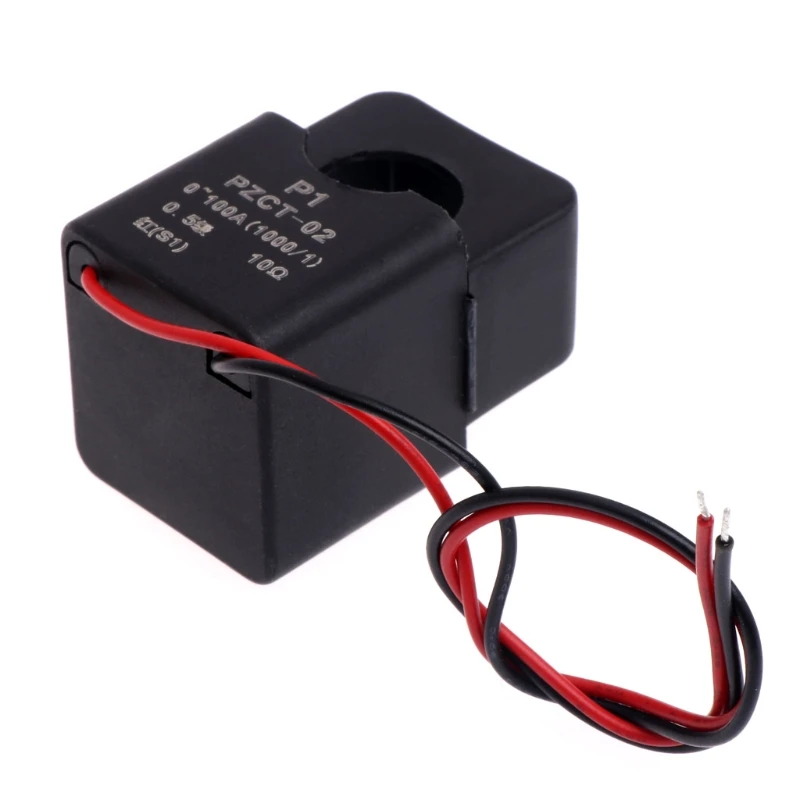

AC 0-100A PZCT-02 Split Coil for 100A Amp Energy Meter Mini Clip-on Measuring Building Electricity Consumption,voltage current meter,power meter

Product Features

The AC 0-100A PZCT-02 split coil is designed for a 100A amp energy meter, allowing for easy measurement of building electricity consumption.
It has a small size of 47x31x29mm and a wire length of 200mm, making it convenient to install in various locations.
With a high-accuracy class and a wide operating temperature range of-40℃~ + 85℃, it provides reliable and accurate measurement results.

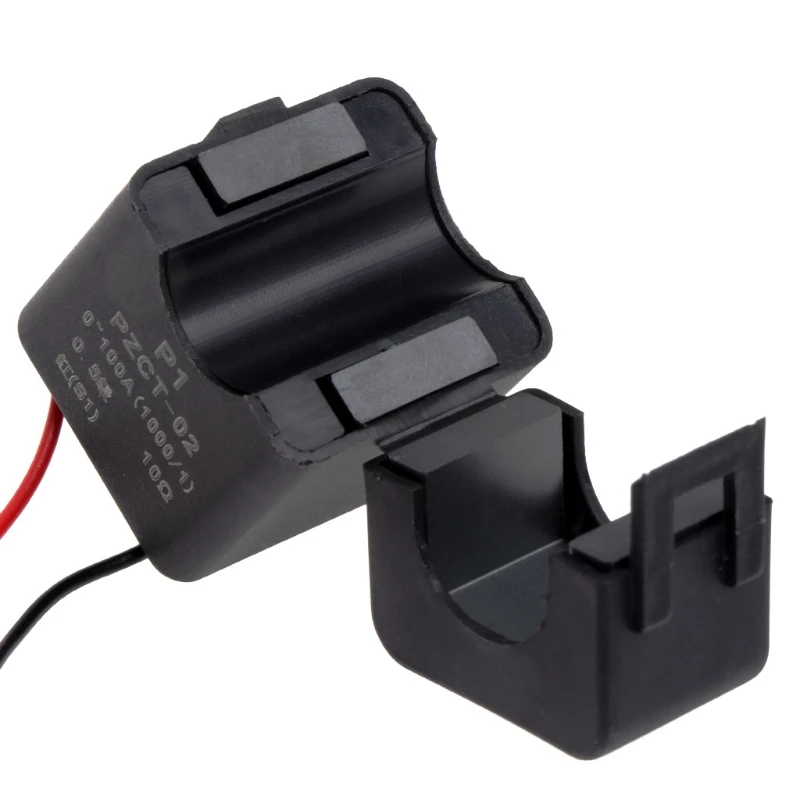

The split-coil design allows for easy installation without the need to disconnect the electrical circuit, saving time and effort.
It meets various safety and performance standards, such as insulation endurance grade B and flame resistance UL94-Vo, ensuring its safety and reliability in use.

Specifications

Brand Name

OOTDTY

Hign-concerned Chemical

None

DIY Supplies

ELECTRICAL

Display Type

Analog Only

Model Number

PZCT-02

Dimensions

47x31x29mm

Operating Temperature

-40℃~+85℃

Accuracy Class

high

Model:

PZCT-02

elative humidity:

≤ 90%(40℃)

Working frequency:

50Hz~60Hz

Insulation endurance grade:

B grade (130℃)

Insulation resistance:

>1000MΩ normally

Dielectric strength:

can afford power frequency 1000V/1minute

Flame resistance:

Conform to UL94-Vo grade

Internal resistance:

10Ω

Measuring range:

0-100A

Size:

47x31x29mm/1.85x1.22x1.14"

Wire Length:

200mm/7.87"

semi_Choice

yes

Description

AC 0-100A PZCT-02 Split Coil for 100A Amp Energy Meter Mini Clip-on Measuring Building Electricity Consumption,voltage current meter,power meter
