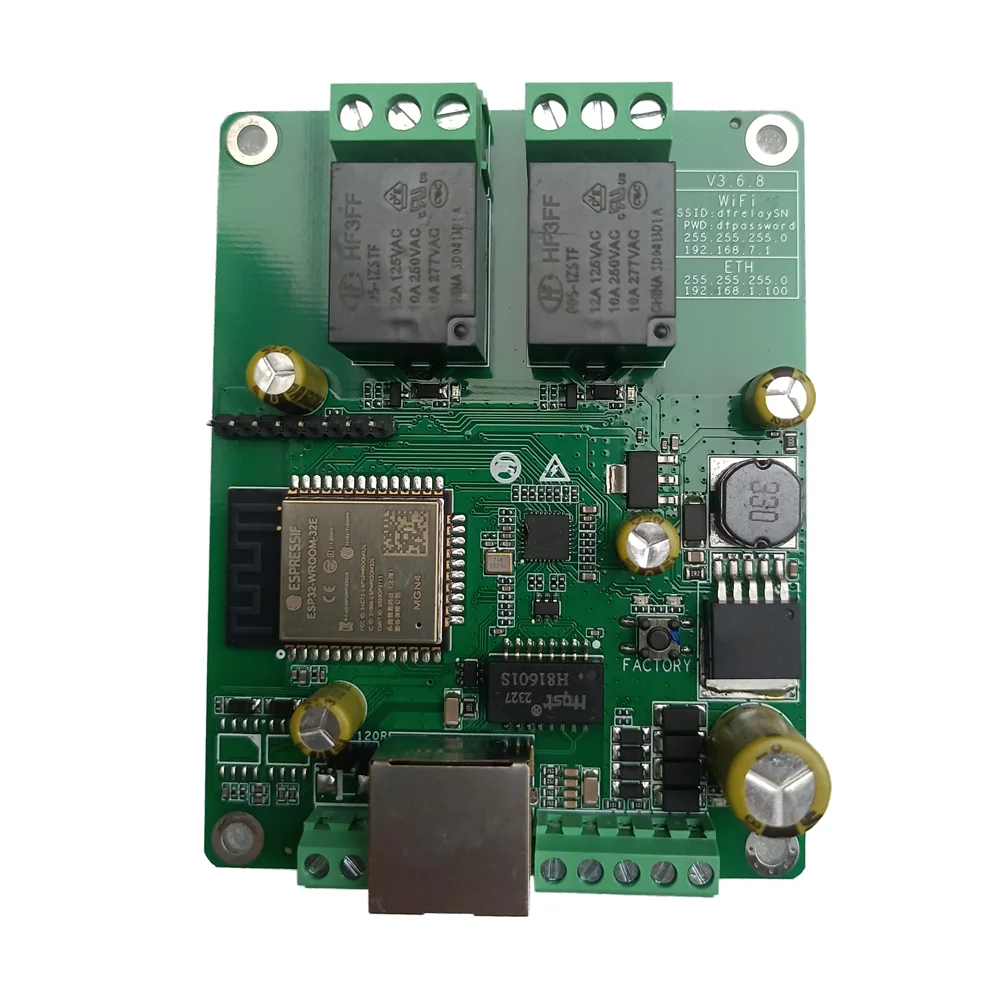

Ethernet Relay Module MQTT Modbus Wifi CAN RS485 TCP Digital Input Web Access Control Board CoAP Ethernet Relay Board

Product Features

This Ethernet relay module supports MQTT, Modbus, Wifi, CAN, RS485, TCP digital input, and web access control, offering a wide range of communication options.
It is all-compatible and ready-to-go, with CE certification, ensuring high-quality performance and reliability.
With a variety of communication ports such as Ethernet, wifi, RS485, Wiegand, CAN, it can be easily integrated into different systems.
It supports multiple protocols like Dingtian-string, Dingtian-Binary, MQTT, HTTP GET, CoAP, Modbus, providing flexibility for different applications.
Powered by 12/24VDC, 12/24VAC and with a DIN35 rail case, it is suitable for home automation and industrial control systems.

Specifications

Brand Name

Communication method

other

Compatibility

All Compatible

State of Assembly

Ready-to-Go

Model Number

DT-R002

Communication Port

Ethernet, wifi, RS485,Wiegand,CAN

Home Automation

Home assistant, Domoticz,openHAB,Node Red

Protocol

Dingtian-string, Dingtian-Binary, MQTT,HTTP GET, CoAP,Modbus

Power Supply

12/24VDC,12/24VAC

Case

DIN35 rail

PCB Size

87*68mm
